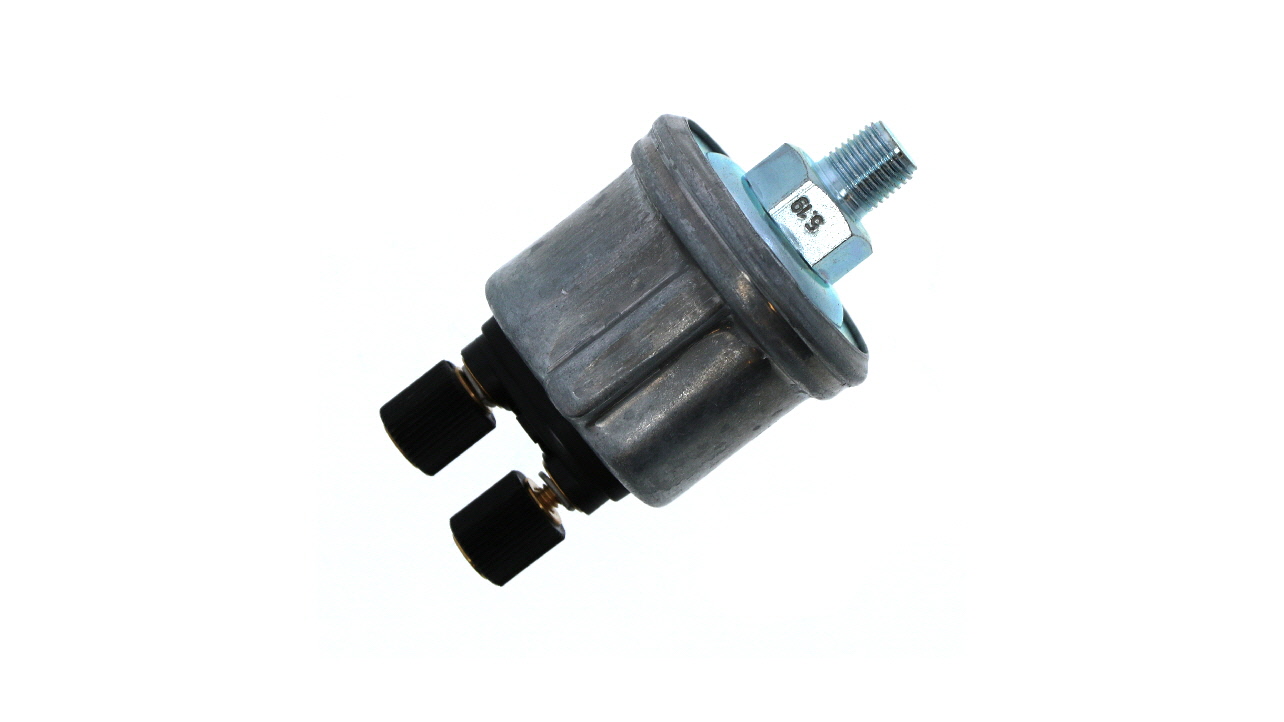

Pressure Sender 150 PSI/10 bar Floating Ground M12x1.5 32/06

Pressure Sender 150 PSI/10 bar Floating Ground M12x1.5 32/06

Catalog #: 360-081-032-006C

Description
Product Data
Downloads

Description

Pressure Sender 150 PSI/10 bar Floating Ground M12x1.5 32/06

Additional information

Output Type	analog
Application	Universal
Connection	Knurled Nut
Voltage	6-24V
Component Reference	32/06
Ground	Floating
Thread	M12x1.5
Warning Contact	No
OHM Range	10-180 Ohm
Country of Origin	DE (Germany)
Type	Pressure Sensors & Switches
Max Sender Value	150 PSI

Downloads

Technical documentation

A2C59519516 Temperature and Press Senders.pdf
