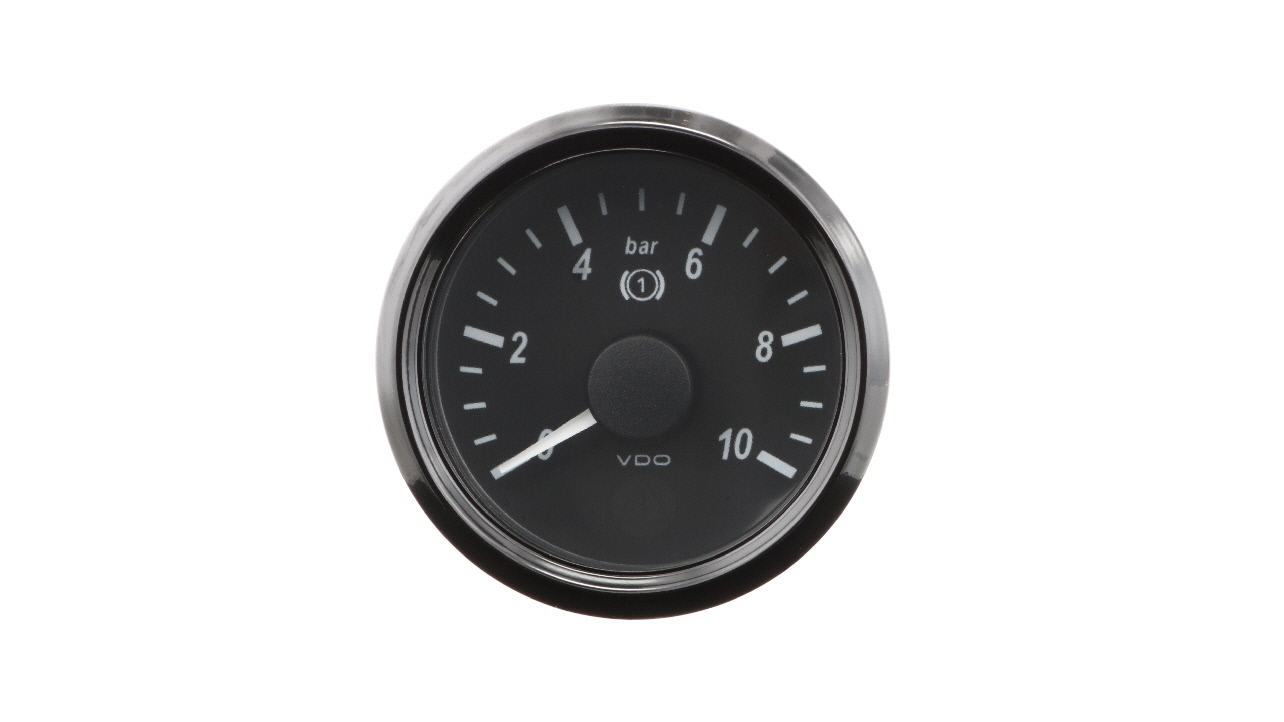

SingleViu 52mm J1939 10bar brake pressure “1” gauge. Retail pack with harness.

Catalog #: A2C1800310035


SingleViu 2 1/16in (52mm) “Brake 1” brake pressure gauge
• J1939 Default input
• RGB LED illumination (default illumination set to white)
• Water resistant front & rear

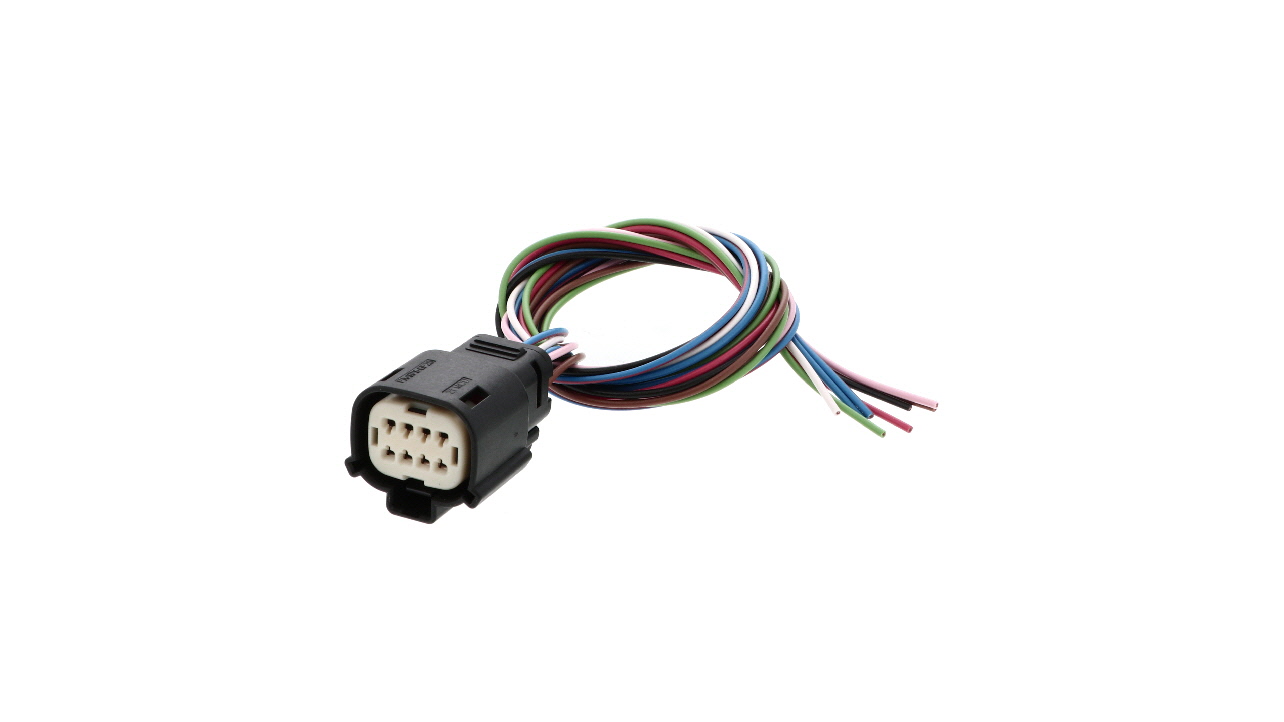

• Includes required wire connector harness

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each ‘smart’ SingleViu gauge has it’s own mircoprocessor, which allows it to have a dual-input capability with no additional software or hardware (such as signal converters, black-boxes or master gauges). Each speedometer or tachometer can also the display the J1939 system fault codes.
These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

Additional information

Input Type


Diameter (US)

Diameter (Metric)

Dial Scale

Min Range Outer Scale

Max Range Outer Scale

On Dail GUI



Mounting Hardware

Housing Material

Dial Color

Bezel Color

Lighting Method

Lighting Color

Lighting Type

Pointer Color

Pointer Type

Lens Material

Lens Construction

Water Protection

Country of Origin

CN (China)



Technical documentation

EN_User Manual-SingleViu_2.2 • 2018.01.pdf
