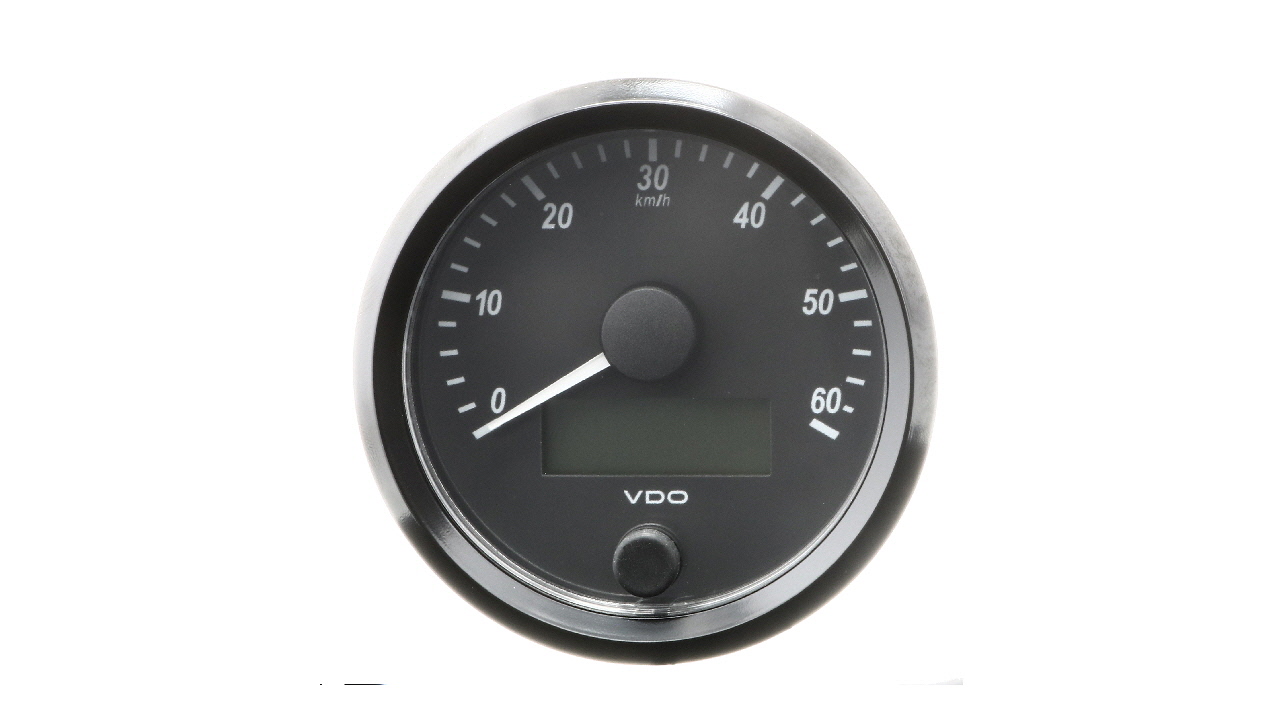

SingleViu 80mm J1939 60km/h speedometer. Retail pack with harness

Catalog #: A2C3832890035

Description

SingleViu 3 1/8in (80mm) 60km/h speedometer
• Stepped mounting ring allows fitment in 3 3/8 (85mm) and 3 1/8 (80mm) dash opening
• J1939 Default input
• RGB LED illumination (default illumination set to white)
• Water resistant front & rear
• Includes required wire connector harness

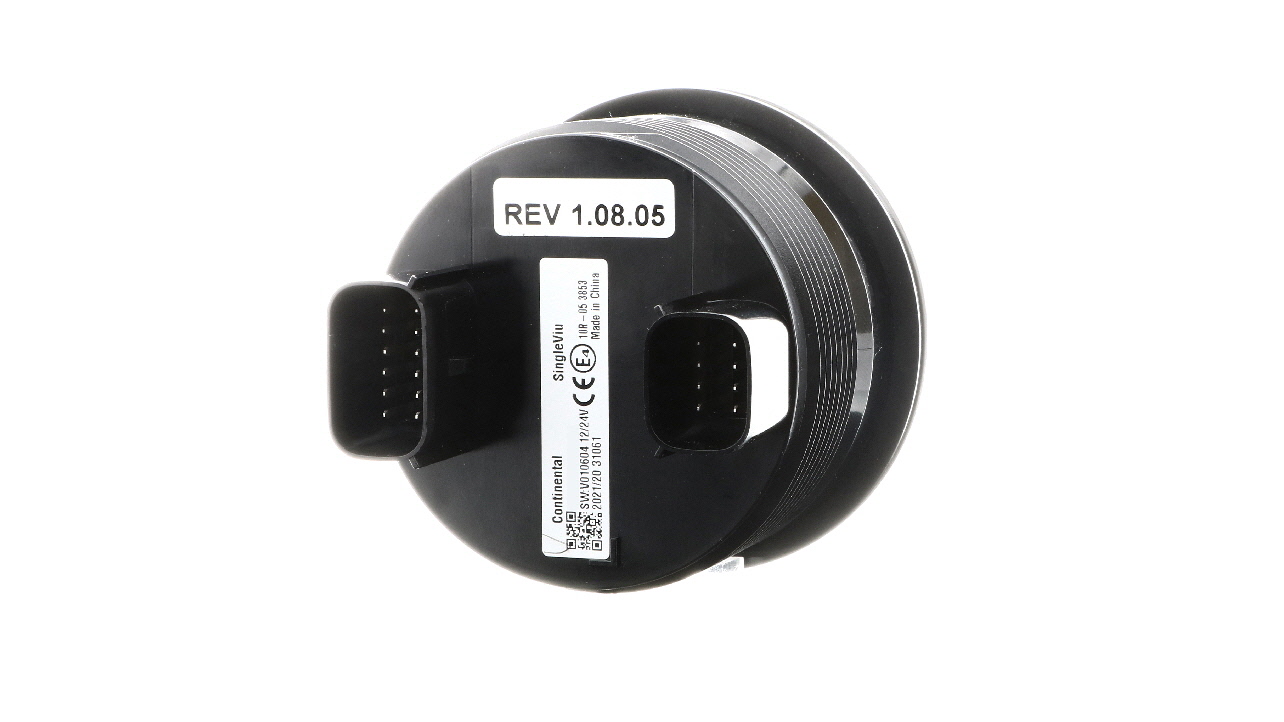

SingleViu 3 3/8in (85-80mm) 60km/h speedometer. Accepts J1939 or traditional analog speed sender inputs. Features RGB illumination and dual fog free lens. Uses standard Molex connectors (part numbers 2910000484200 and 2910000484300, sold separately. Works on both 12V or 24V systems

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each ‘smart’ SingleViu gauge has it’s own mircoprocessor, which allows it to have a dual-input capability with no additional software or hardware (such as signal converters, black-boxes or master gauges). Each speedometer or tachometer can also the display the J1939 system fault codes.
These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

Additional information

Input Type

Application

Diameter (US)

Diameter (Metric)

Dial Scale

Min Range Outer Scale

Max Range Outer Scale

Connection

Voltage

Mounting Hardware

Housing Material

Dial Color

Bezel Color

Lighting Method

Lighting Color

Lighting Type

Pointer Color

Pointer Type

Lens Material

Lens Construction

Water Protection

Country of Origin

CN (China)

Type

Downloads

Technical documentation

EN_User Manual-SingleViu_2.2 • 2018.01.pdf
